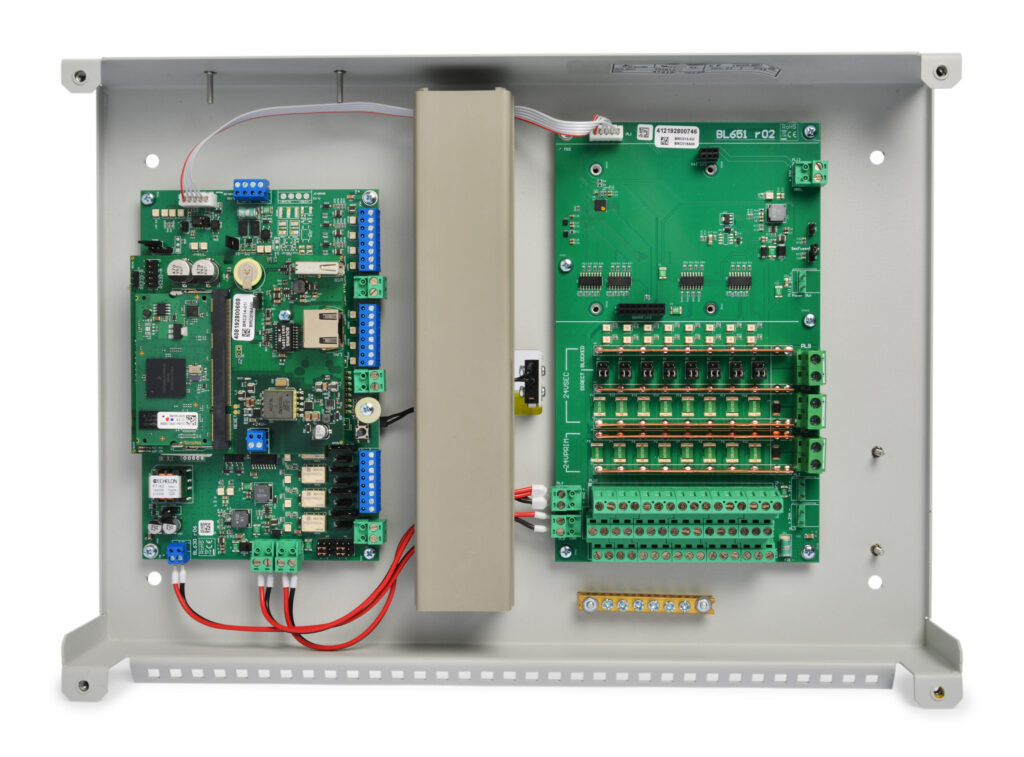

Moveo XL
In the Integra access control system Moveo XL is the main control unit that handles cards, access zones, time zones, alarm management and all other decisions in the system. All configurations such as database setting, alarm evaluation and handling, event’s logging are configured and downloaded from the Integra application. Moveo XL has an internal database for autonomous evaluation off access rights and alarm events. The database is continuously synchronised with central server when connection is available.
Moveo XL – an important cog in a secure solution.
Control unit Moveo XL is an important component in the Integra security platform. Together with other components such as access control readers and access point- and I/O controllers, Moveo XL forms one of the most secure and advanced intrusion alarm- and access control systems on the market.
Moveo XL is normally installed in a server room and acts as the communication central in Integra. The Moveo takes the decisions to grant access or start an alarm sequence based on the onboard database and also controls the access point controllers and access control readers, which in turn effectuates and presents the desired event, for instance that an alarm zone is disarmed or that the electrical lock is unlocked and that the reader signals that the door is opened to the user.

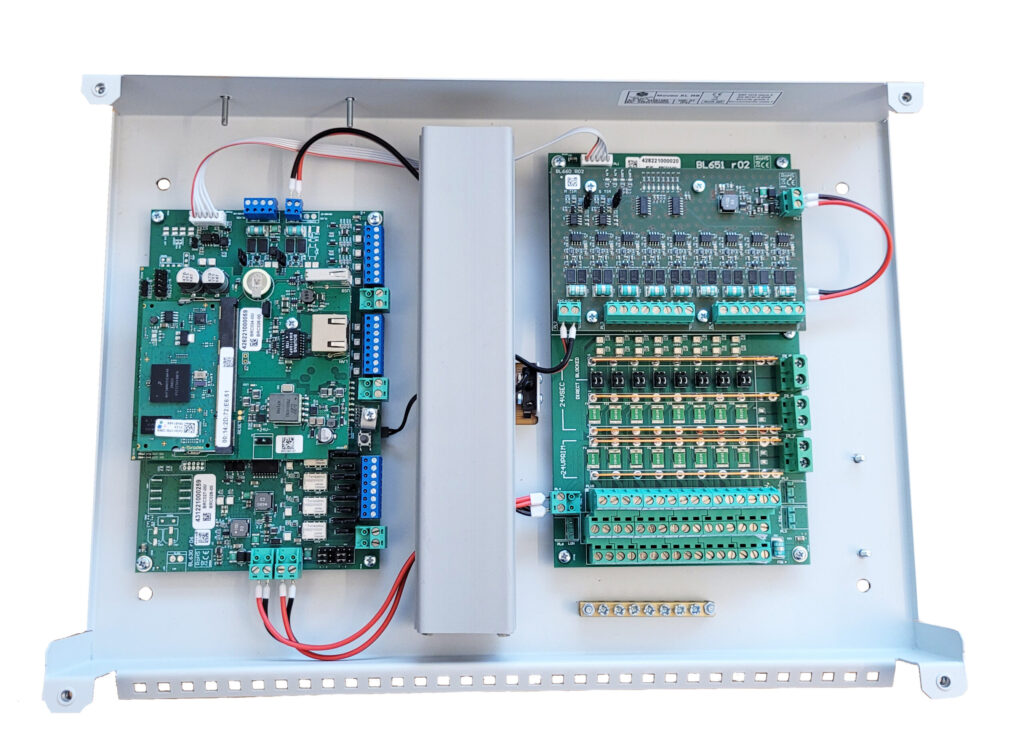

Moveo XL RS
Moveo XL RS has the same functionality as Moveo XL with the difference that all communication takes place over RS-485 instead of LON between Moveo XL and S-Nodes. Moveo RS is equipped with distribution cards for eight separate RS-485 communication channels for connection to S-Nodes.
Article number
| 44281325 | Moveo XL |
Technical data
| Power supply, Typical/Min/Max | 24 VDC/20 VDC/30 VDC |
| Power consumption, Typical/Max at 24V | 130/235 mA |
| Enclosure | IP42 |
| Operating temperature | -10°C till +55°C |
| Dimensions NET (L/W/H) | 387/315/55 mm |
| Weight NET | 3250 g |
| Color | RAL7035 |
Specific technical data
| Communication | TCP/IP (to Server) LonWorks FTT-10 (S-Nodes) RS-485 (card readers) RS232-A (alarm transmitters) RS232-B (UPS) |
| Powersupply Out | 12VDC, 0.5 A (alarm products) 24VDC Primary (S-Nodes) 24VDC Secondary (Locks) |
| Inputs | 4 pcs relays (NO/NC/24VDC), 1A |
| Outputs | 4 pcs relays (NO/NC/24VDC), 1A |
Product datasheet, Moveo XL
